Overview

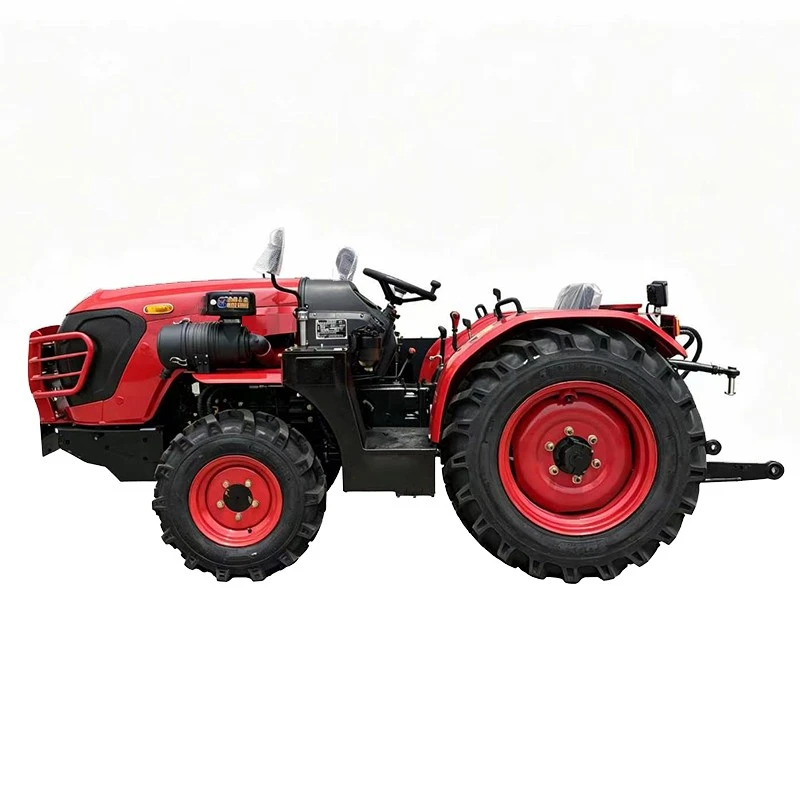

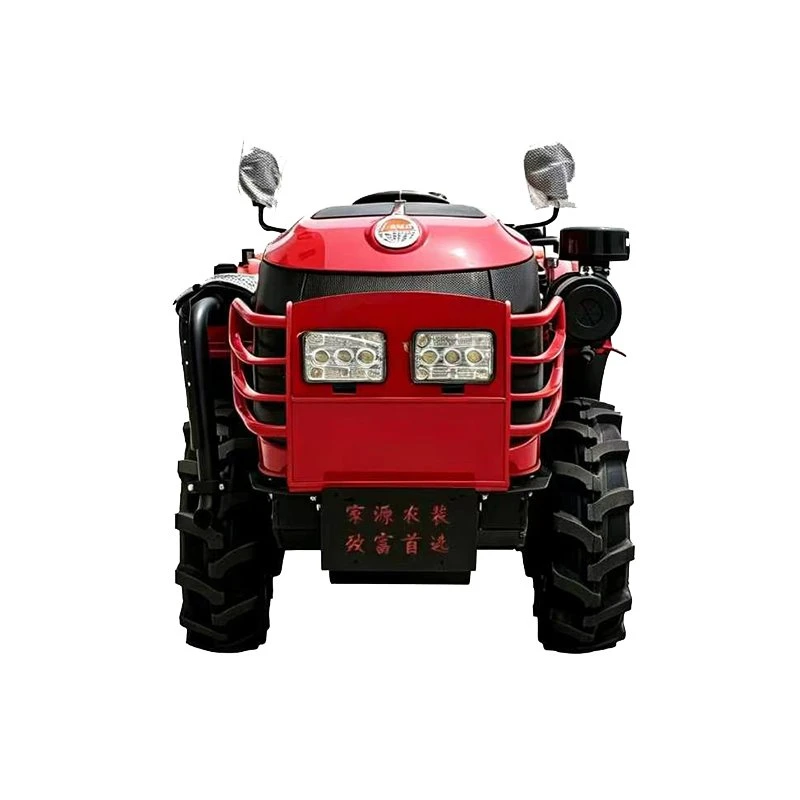

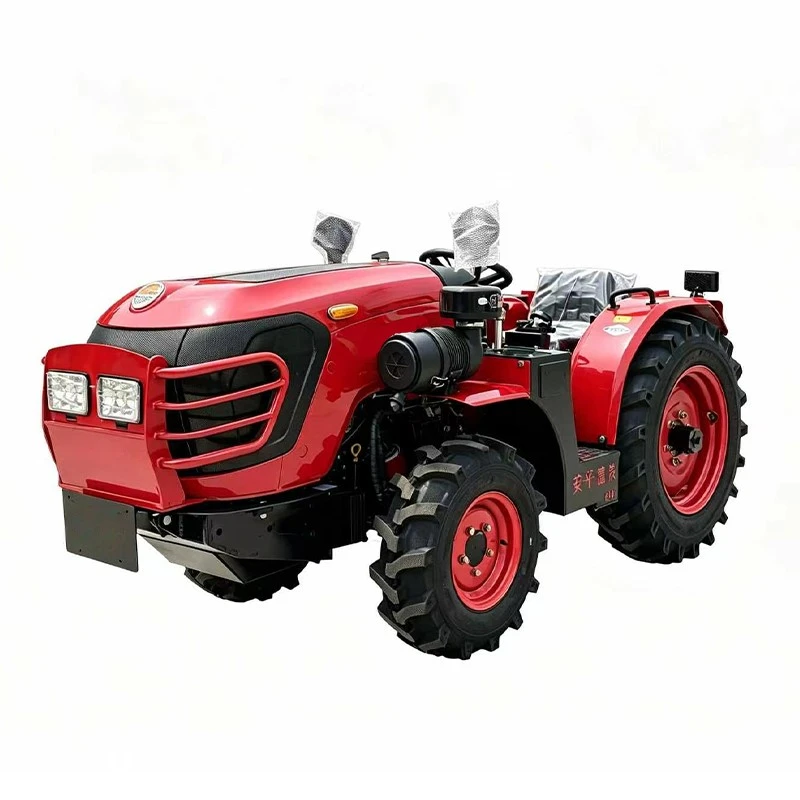

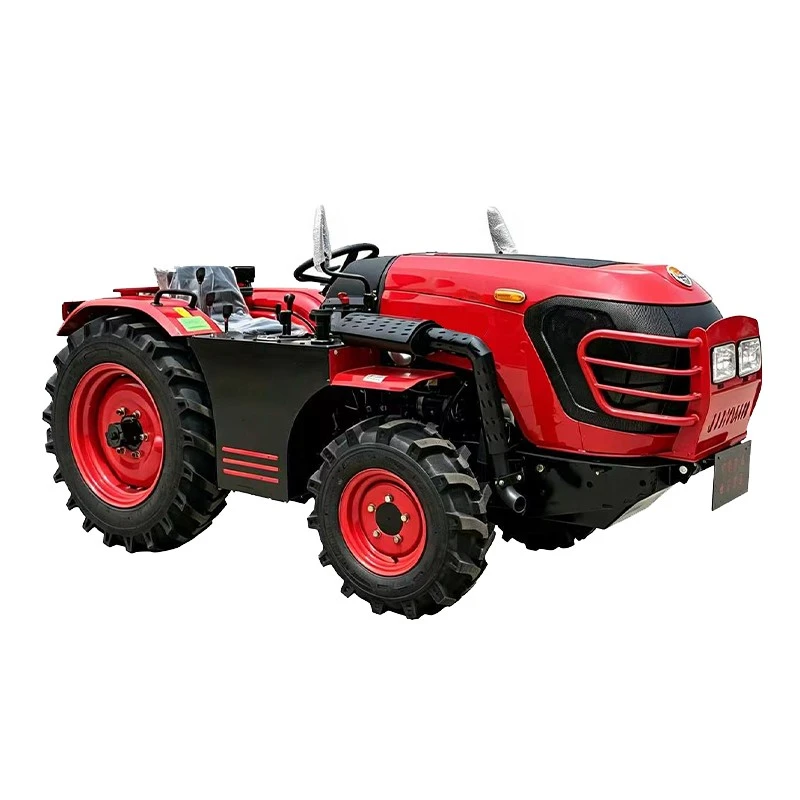

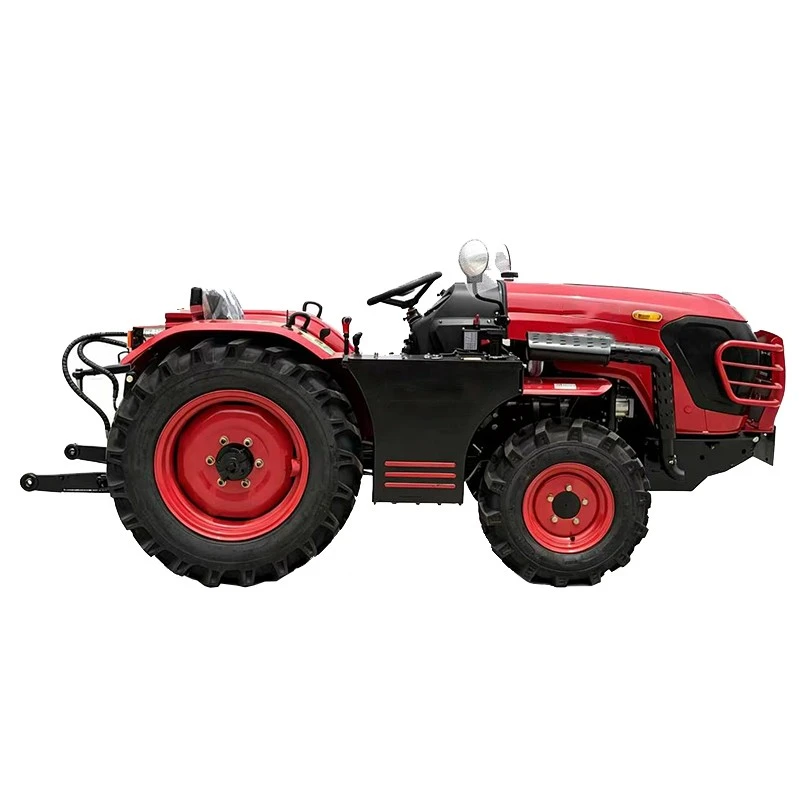

This 50HP narrow orchard tractor fills the gaps of standard tractors in specialty farming. It solves common on-site pain points including crop scraping, poor maneuverability in tight spaces, and slope slipping. It comes from an 18-year professional farm machinery manufacturer with CE certification, and balances compact size, durable build and reliable performance for diverse daily farm tasks.
Key Application Scenarios
Vineyards (1.5–1.8m row spacing)
Standard 1.35m-wide tractors leave little clearance in narrow rows, and cause 30–50 broken fruiting canes weekly with a 15% potential yield loss. This 1.2m-wide tractor leaves a 20cm safety margin on both sides. Its 1.25m short wheelbase enables a 2.8m turning radius, with rear wheel deviation under 15cm to nearly eliminate cane breakage. The rear-mounted exhaust directs fumes along the ground, cutting grape residue from 0.8mg/kg to below 0.1mg/kg to meet EU export standards and remove the need for daily fruit wiping labor.
High-Crop Greenhouses (1.4m aisles)
Standard tractors often scrape tall crop leaves and scar 5–8% of fruits, and require multiple reverses to turn in narrow aisles. This tractor has 30cm of chassis ground clearance to lift above crop canopies and avoid fruit damage. Its short wheelbase allows 180° turns in 1.4m aisles without reversing, saving 1.5 hours daily in a 100-bed greenhouse. The 47cm-high rear exhaust prevents hot air from scorching seedlings, raising seedling survival rates by 8%.
Hilly & Mountainous Fields (≤18% slopes)
Lightweight tractors slip 5–8 times daily when hauling 700Kg crop bins uphill, and often stall mid-slope. This 1400Kg tractor uses a 60/40 front-rear weight distribution to increase front-wheel grip by 30%. Paired with wide rear tires, it pulls a 2-row seeder up 15° post-rain slopes without slipping and requires no mid-slope restarts.
Nurseries (30cm raised beds)
Standard tractors have low PTO shafts that hit raised bed edges and damage 10–15% of young seedlings. This tractor has a 47cm-high PTO shaft that leaves a 17cm safety margin. Its 13m/min creeper gear matches the pace of manual transplanting. Nursery operators report a 90% drop in seedling damage after switching to this model.
Core Benefits
Slim Frame with Heavy-Duty Build
This tractor is 0.2m narrower than most 50HP high-clearance tractors, with no compromise on durability. The frame uses 8mm-thick steel with reinforced crossbars, and has only 2mm maximum deformation when pulling a 500Kg harvester. Combined with 30cm ground clearance and an elevated PTO shaft, it cuts frequent stops for debris removal or part repair.
Stable Traction for Sloped & Heavy Work
The reinforced chassis with 3mm-thick side plates supports 8 hours of continuous plowing with a 500Kg plow without overheating. Its 60/40 front-rear weight distribution keeps the front axle fully grounded on 12% slopes, unlike standard tractors that lift front wheels and waste traction power. All power goes directly to pulling work.
Low-Maintenance Factory-Optimized Parts
All parts are tuned for real farm conditions to reduce downtime. The external wet-type air filter traps 98% of dust and lasts 50 hours in dry vineyards, saving 2 hours of weekly maintenance. The 60L cast iron fuel tank resists cracking in -5°C weather and rock impacts, and supports 8–10 hours of continuous work. Disc brakes stop from 10km/h in 2.5m even in muddy fields.
Versatile Gear System for All Tasks
The fully meshed sleeve transmission has 12 forward gears, 4 reverse gears and a 13m/min creeper gear. One machine covers transport, pruning and deep tillage, so you do not need to rent extra equipment. High gears reach 32km/h for fast field-to-field transport, and low gears match manual pruning pace. The creeper gear supports 30cm deep tillage without soil compaction.
FAQs
Q: Why use a rear-mounted exhaust instead of front-mounted?
A: Front-mounted exhausts tangle with grape tendrils frequently and require daily cleanup. The rear-mounted design avoids tangling and spreads exhaust along the ground. It cuts grape residue to below 0.1mg/kg, which meets EU export requirements for premium wine grapes.
Q: Will this tractor sink in muddy fields?
A: No. Its wide rear tires distribute weight over a 0.3㎡ contact area for low ground pressure. It performed reliably in post-rain rice paddy tests, even when pulling a 300Kg seeder. Its disc brakes also maintain strong stopping power in mud to prevent sliding into field ridges.
Q: Is the cast iron fuel tank too heavy?
A: The cast iron tank is 5Kg heavier than plastic alternatives, but it delivers better long-term value. It does not crack in -5°C freezing weather and resists rock impacts. Its 60L capacity also supports full work shifts without mid-day refueling stops.
Q: Do I need special tools for maintenance?
A: No. Every tractor ships with a full maintenance kit including a filter wrench, hydraulic fluid tester and calibrated tire pressure gauge. It also includes a 20-page photo guide with simple step-by-step instructions for routine maintenance.
Technical Specifications
|
Specification Category |
Details |
What It Means for You |
|
Overall Dimensions |
Length: 2.55m; Width: 1.2m; Height: 1.13m |
1.2m width fits 1.5m narrow rows; 1.13m height fits under 1.2m greenhouse ceilings |
|
Wheelbase |
1.25m |
180° turns in 1.4m aisles without reversing; rear wheel deviation <15cm |
|
Chassis Ground Clearance |
30cm (high-clearance design) |
Clears 95% of field rocks under 25cm; no scraping of irrigation tubes |
|
PTO Shaft Height |
47cm |
17cm safety margin for 30cm-tall raised beds; no bed-edge impacts |
|
Tire Configuration |
Front: 620/190-12; Rear: 910/250-20 |
Rear tires (0.3㎡ contact area) prevent sinking in mud |
|
Transmission Type |
12F + 4R fully meshed sleeve shifting |
No gear jamming in dusty conditions; smooth shifting |
|
Creeper Gear Speed |
Minimum 13m/min |
Matches walking pace for transplanting; no seedling damage from rushed work |
|
PTO Output |
540/720 rpm (dual-speed) |
Compatible with most implements (trimmers, seeders, harvesters) |
|
Hydraulic System |
Strong lift/lower with floating function; 1–2 hydraulic outputs |
Easily lifts 500Kg plows; supports 2 implements at once |
|
Operating Weight |
1400Kg (60% front, 40% rear) |
30% better front grip on slopes; no wasted traction power |
|
Engine Model |
Laidong 4-cylinder diesel |
50hp output; fuel consumption: 2.8L/h (0.5L less than similar engines) |
|
Exhaust Port |
Rear-mounted (15° downward, 30° away from rows) |
No grape tendril tangling; no fruit contamination from exhaust |
|
Air Filter |
External wet-type |
Lasts 50 hours; saves 2 hours/week on maintenance |
|
Fuel Tank |
Cast iron (60L) |
No cracking in -5°C; impact-resistant; 8–10 hours of work without refueling |
|
Braking System |
Disc brakes |
Stops in 2.5m from 10km/h; no slipping in mud |
