Product Overview

Many greenhouse and orchard operators face a persistent challenge: completing heavy-duty work in tight spaces. Low-power narrow tractors lack the power output for deep tillage or straw crushing, while standard wide-frame tractors cannot fit through narrow aisleways and tree rows. Operators are forced to choose between slow, inefficient work and the inability to use heavy implements at all.

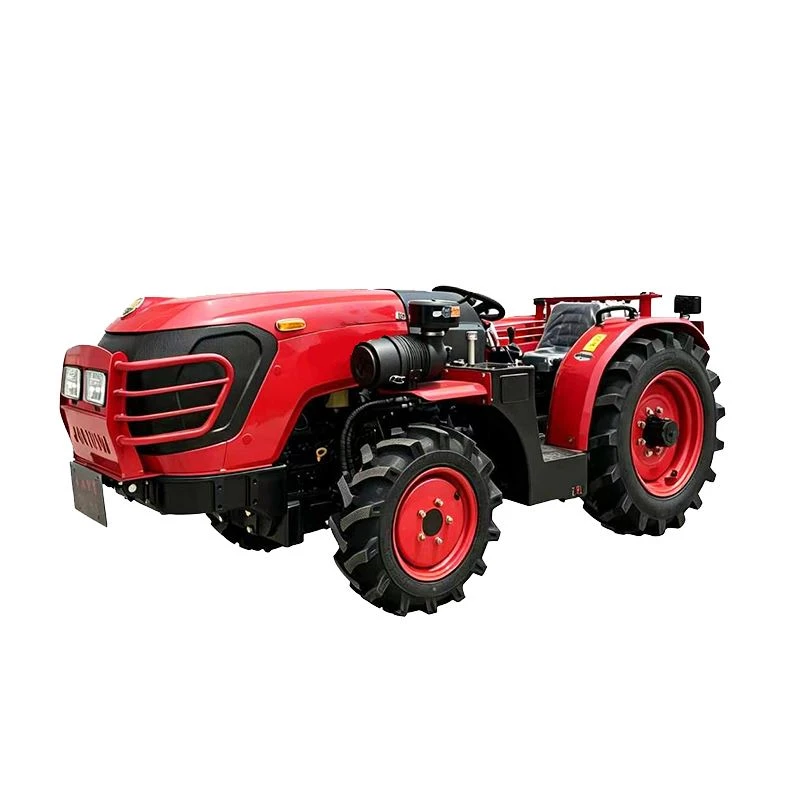

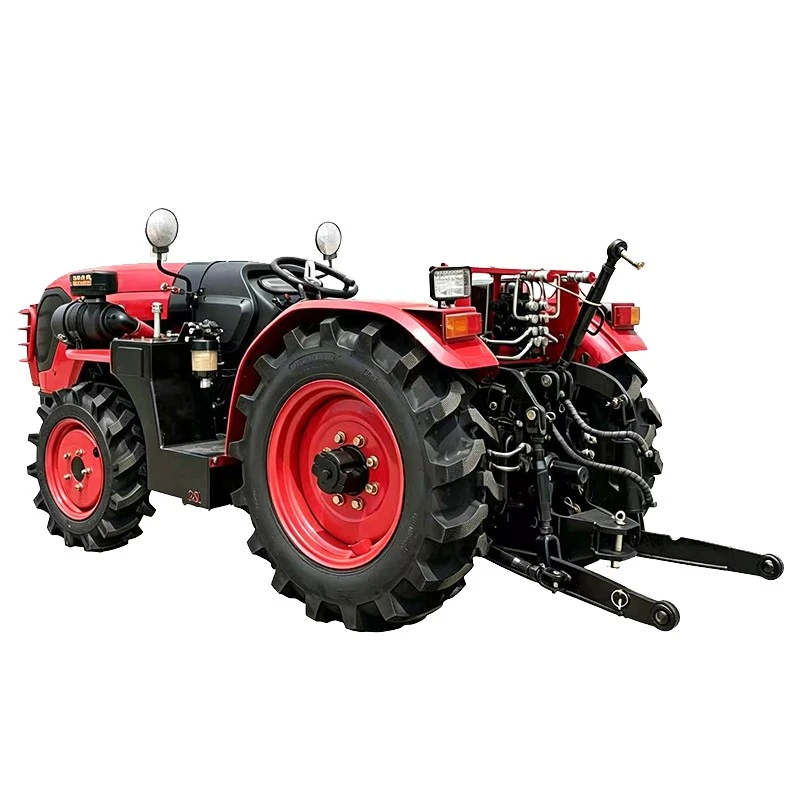

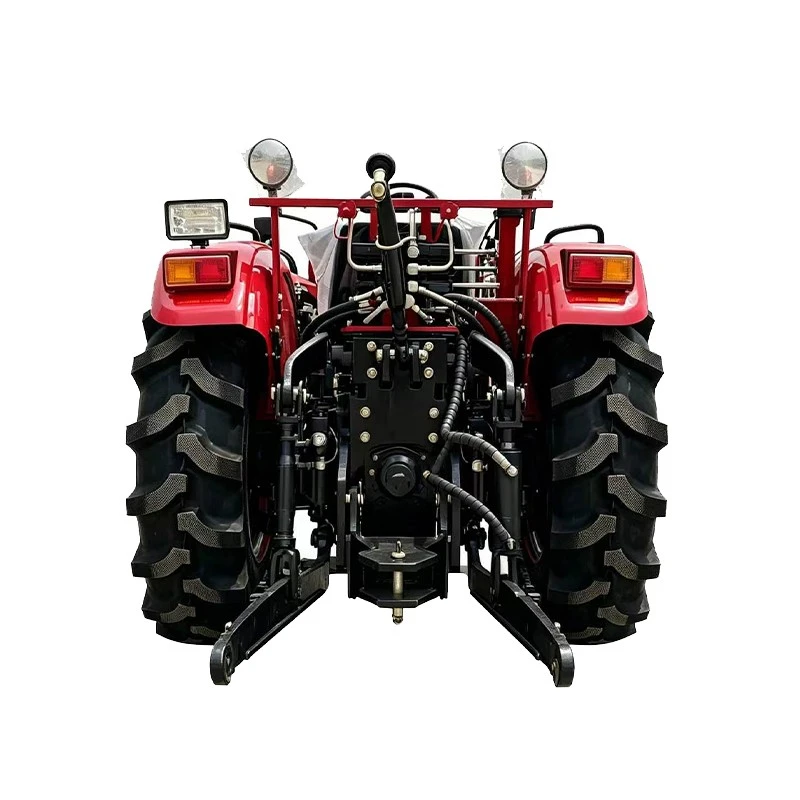

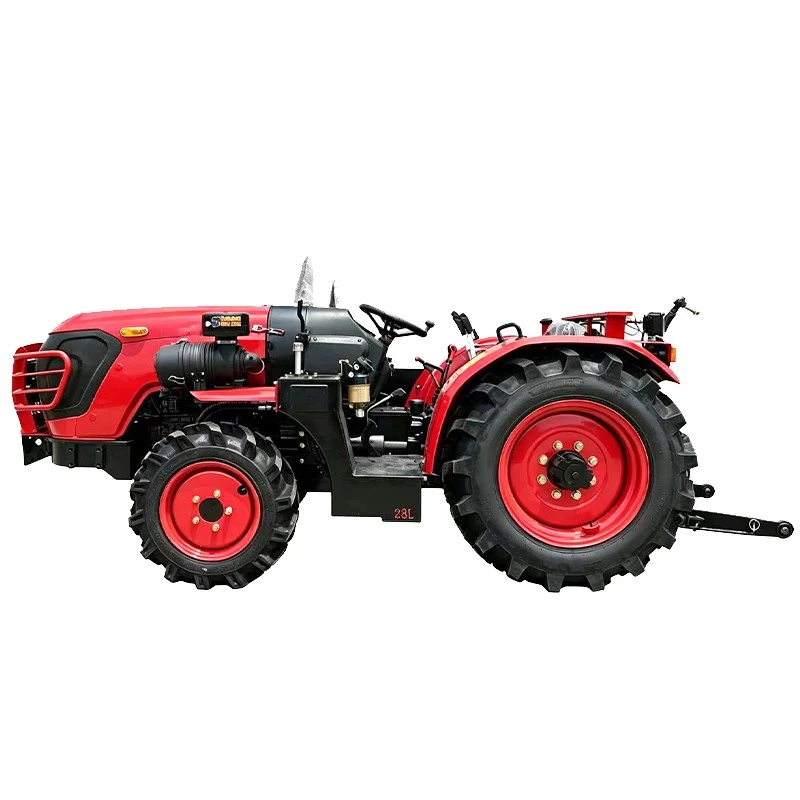

Our 70HP Narrow Greenhouse Tractor solves this dilemma by pairing robust 70 horsepower with a compact, narrow body. It navigates tight greenhouse aisles with ease while delivering enough power to pull heavy farming tools - no trade-off between size and performance. Compared to a 50HP narrow tractor, it completes deep tillage 40% faster, letting you cover more ground in less time.

Key Product Specifications

Specification	Details
Engine Power	70 HP
Drive System	4-Wheel Drive (4WD)
Wheelbase	1.35 m
Overall Weight	1860 kg
Overall Height	1.1 m/1.17m(Different heights for different working conditions)
Ground Clearance	23 cm
PTO Shaft Height	43 cm
Transmission	12 Forward + 4 Reverse Gears, with 3.5m/min crawler gear
Chassis	Double-layer Q345 steel frame

Compact Design for Confined Spaces

Purpose-built for tight environments, this tractor features an ultra-short 1.35m wheelbase - far shorter than the 1.6m+ wheelbase of most standard 4WD tractors. It completes turns in a single pass in 0.8m-wide aisles, eliminating the repeated maneuvers that waste hours of productive time each day. A Dutch tomato grower operating 10 greenhouse units confirmed: "This tractor turns in one go. I no longer nick the bench edges."

Heavy-Duty Chassis for Long-Term Reliability

The 1860kg heavy-duty chassis delivers exceptional stability. Lightweight tractors under 1500kg experience 40% more slippage on wet slopes than this model.
We use a double-layer frame design: the lower layer is constructed from 8mm-thick Q345 steel - the same grade used in construction machinery - to resist bending under heavy loads. The upper layer includes a 50kg adjustable counterweight to match regional operating needs. This robust build maintains structural integrity even after years of continuous heavy use.

Reliable 4WD Traction for Sloped Terrain

Most 4WD tractors use a 50:50 front-rear weight balance, which causes front-wheel lift on 20° slopes and wastes fuel. We shifted the engine 10cm forward to achieve a 55:45 weight ratio, improving front-end grip. Paired with 15mm-deep herringbone tread tires - 30% deeper than standard industry tires - this design delivers superior traction on loose soil.

Durable High-Clearance PTO Shaft

PTO shaft damage is the top repair issue for nursery and orchard farms. Analysis of 500 repair records shows that 70% of damage stems from impacts with stumps or ridges.
Our PTO shaft is mounted 10cm higher than the industry standard, sitting 43cm off the ground to avoid obstacles. We also use a splined connection instead of a standard keyway for greater torque resistance and longer service life.

Optimized Gearing for Farm Operations

This tractor has 12 forward and 4 reverse gears, with ratios tuned for real-world farm work. Fifth gear operates at 12km/h, ideal for hauling fertilizer, while second gear (4km/h) is optimized for tillage.
It also features a 3.5m/min crawler gear for precision seeding, paired with a German ZF slow-speed clutch to prevent stalling during fine, low-speed work.

Quality & After-Sales Support

Backed by 12 years of agricultural machinery manufacturing experience, this tractor was developed with input from 200+ farms across Europe, Asia, and North America to solve real operational pain points.

EU CE certified for compliant use in your target markets
20+ pre-shipment quality checks per unit, with full test reports available on request
2-year whole-machine warranty, with 3-year coverage for engine and chassis
Customizable options including dust shields for arid regions and LED work lights for night operation

Ideal for agricultural distributors and large-scale farm owners, this tractor delivers proven real-world performance for confined-space farming. Contact our sales team today for client reference videos, detailed test reports, and customization support.
